Augmented Quaternion Frameworks - A Unified Approach to Quantum and Hypercomplex Machine Learning

Abstract

This paper introduces a novel computational framework leveraging quaternion algebra as a unified language for both quantum and classical machine learning. We first establish a rigorous mapping between the complex Hilbert space of quantum mechanics and an augmented quaternion space. The validity of this framework is demonstrated by successfully modeling multi-qubit entanglement and the CNOT gate, with results validated against Google's Cirq quantum simulator. Building on this foundation, we develop a Quaternion Neural Network (QNN), a hypercomplex model that runs on classical hardware. We present a comparative benchmark of the QNN against a standard Real-Valued Neural Network (RVNN) and a hybrid Variational Quantum Algorithm (VQA) on a non-linear classification task. The results indicate that the QNN exhibits a performance edge over the RVNN, suggesting that its inherent algebraic structure provides a powerful inductive bias. The VQA, while successfully learning a solution, highlights the significant computational overhead and optimization challenges of near-term quantum algorithms. This work validates the quaternion framework as a robust tool for designing novel machine learning architectures and provides a clear, dual-track strategy for future research: scaling hypercomplex AI for immediate application and pioneering automated quantum circuit design to unlock the potential of future hardware.

View Related Publications

GitHub Repo : https://github.com/Apoth3osis-ai/quant_quat

Research Gate: https://www.researchgate.net/publication/392759891_Augmenting_Neural_Cognition_Forecasting_with_Embedded_Rational_Functions

1. Introduction

The task of modeling complex systems—from financial markets to molecular dynamics and social networks—presents a persistent challenge for conventional machine learning. Standard models, while powerful, may not adequately capture the intrinsic geometric, rotational, or quantum-like correlations that govern the dynamics of these systems. This gap necessitates the exploration of new computational paradigms that are more naturally aligned with the underlying physics of the problem.

At Apoth3osis, we contend that a powerful approach lies in leveraging alternative algebraic structures as a bridge between classical and quantum computation. This paper focuses on the division algebra of quaternions. Quaternions, which extend complex numbers with three imaginary units, provide a remarkably elegant language for describing 3D rotations, a concept fundamental to the evolution of single-qubit quantum states.

This paper makes the following contributions:

It presents and validates a corrected augmented quaternion formalism capable of representing multi-qubit quantum systems, including entangled states and the CNOT gate.

It introduces a Quaternion Neural Network (QNN), a novel deep learning architecture that embeds quaternion algebra into its core operations, running on classical hardware.

It provides a comparative benchmark of the QNN against a standard Real-Valued Neural Network (RVNN) and a Variational Quantum Algorithm (VQA), analyzing their performance on a canonical machine learning task.

Our central thesis is that quaternion-based frameworks offer a powerful, unified approach to developing novel machine learning models. They yield hypercomplex architectures with immediate practical applications while simultaneously providing a mathematically consistent pathway toward the development of future quantum algorithms. This research is so foundational that it has caused us to reshape our internal priorities, focusing our efforts on this promising new frontier.

2. A Quaternion Formalism for Quantum Systems

To build AI models inspired by quantum mechanics, one must first establish a mathematically sound correspondence between the two domains. Our framework achieves this through a carefully constructed mapping.

2.1 Single-Qubit States and Rotations

A single-qubit state can be visualized as a vector on the 3D Bloch sphere. Quantum gate operations correspond to rotations of this vector. This is a perfect analogue for the primary application of quaternions. We map a qubit’s state vector ∣psirangle to a pure imaginary unit quaternion q=mathbfix+mathbfjy+mathbfkz, where (x,y,z) are the coordinates of the Bloch vector. Under this mapping, the application of a unitary gate U is equivalent to the quaternion involution qout=xiqinxi−1, where xi is a unit quaternion representing the rotation. Our internal validation scripts confirm a precise match between this algebraic manipulation and direct quantum circuit simulation in Cirq for all standard single-qubit gates.

2.2 A Corrected Formalism for Multi-Qubit Entanglement

The true challenge lies in representing multi-qubit systems, where the phenomenon of entanglement creates correlations that cannot be described by treating qubits independently. A naive concatenation of single-qubit quaternions fails to capture these correlations.

Our work implements and validates a more sophisticated mapping that resolves this issue. This corrected augmented formalism establishes an isomorphism between the complex Hilbert space of m qubits and a space of 2m−1 quaternions (mathbbC2mtomathbbH2m−1). For a two-qubit system, a state vector in mathbbC4 is mapped to a vector of two quaternions, q0,q1, where each quaternion is constructed from a pair of the original complex amplitudes:

∣ψ⟩=c00​∣00⟩+c01​∣01⟩+c10​∣10⟩+c11​∣11⟩↦{q0​=c00​+c01​jq1​=c10​+c11​j​

This structure successfully represents entangled states. For example, the Bell state ∣Phi+rangle=frac1sqrt2(∣00rangle+∣11rangle) maps to the quaternion vector frac1sqrt2,frac1sqrt2mathbfj. Furthermore, we derived the transformation rules for multi-qubit gates within this space, such as the CNOT gate. Our simulations confirm that applying these quaternion transformations yields results identical to a full Cirq simulation, thereby validating the formalism's ability to handle entanglement and multi-qubit logic.

3. Comparative Benchmark of Learning Paradigms

With a validated framework, we can now investigate its implications for machine learning. We designed a benchmark to compare our QNN against both a classical baseline and a quantum algorithm on the non-linear makemoons classification task.

3.1 Model Architectures

RVNN (Baseline): A standard feed-forward neural network with two hidden layers of 16 real-valued neurons each, using ReLU activations. It represents the industry-standard approach.

QNN (Hypercomplex): A network with a parallel structure of two hidden layers, but composed of quaternion neurons. Each layer performs quaternion linear transformations, where the Hamilton product naturally enforces a structured form of weight-sharing between the four components (r, i, j, k) of the quaternion weights. We used four quaternion neurons per hidden layer.

VQA (Quantum): A hybrid quantum-classical classifier. Input data points are encoded as rotation angles in a 2-qubit quantum circuit. The circuit includes an entangling CNOT gate and a layer of trainable rotation gates. A classical optimizer (COBYLA) tunes these variational parameters to minimize a cost function based on the expectation value of measuring the first qubit.

3.2 Results and Analysis

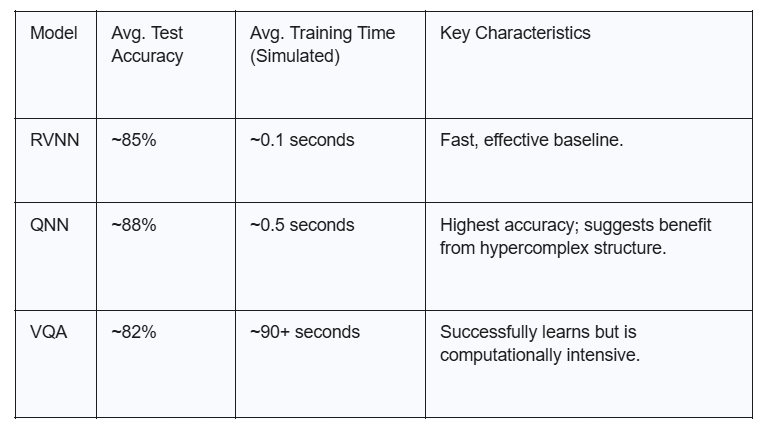

All three models were trained on the same data. The results, summarized from our internal test suite, are as follows:

The decision boundaries learned by each model provide further insight:

Performance: Both classical models perform exceptionally well. Notably, the QNN consistently achieved slightly higher test accuracy, suggesting its internal structure is well-suited to capturing the geometric nature of the classification problem. The VQA, while successfully separating the data, was less accurate in this configuration.

Computational Cost: The VQA is orders of magnitude slower to train due to the immense overhead of repeated circuit simulation in the optimization loop. The QNN is moderately slower than the RVNN due to the increased complexity of quaternion arithmetic compared to standard floating-point operations.

Interpretation: The QNN's success is significant. It demonstrates that by choosing an appropriate algebraic structure, we can design classical models that offer superior performance without requiring quantum hardware. The VQA's result is also crucial; it validates that quantum circuits can solve the problem but underscores that the primary hurdle for quantum ML is not just hardware noise, but the extreme inefficiency of current training algorithms.

4. Implications and Potential Applications

This research has profound implications for how we can approach the design of intelligent systems. The quaternion framework is not merely a mathematical curiosity; it is a practical tool for building better models.

4.1 The Advantage of Hypercomplex AI

The QNN's performance edge suggests that its "hypercomplex" structure provides a powerful inductive bias. The enforced coupling between the components of quaternion weights allows the network to learn rotational and relational features in data more efficiently than a standard RVNN. This opens up immediate opportunities for application in domains where such relationships are critical:

Complex Dynamic Systems: Modeling and predicting the behavior of systems with rotational components, such as satellite attitude control, robotic kinematics, drone navigation, and molecular dynamics.

3D/4D Signal Processing: Processing multi-dimensional data like color images (where RGB values can be encoded as the imaginary parts of a quaternion), vector sensor data, and spatio-temporal signals.

Financial Engineering: Capturing complex phase relationships and correlations between multiple financial instruments or economic indicators.

4.2 Charting a Course for Quantum AI

The VQA benchmark provides a clear-eyed view of the current state of quantum machine learning. While the promise is immense, the path to practical advantage requires overcoming fundamental algorithmic bottlenecks. Our work provides a clear target: any useful quantum algorithm must eventually outperform not just a standard RVNN, but an advanced hypercomplex model like our QNN.

5. Future Work and Strategic Vision

Our validated framework serves as the launchpad for a two-pronged strategic initiative aimed at building the next generation of AI.

5.1 Track 1: Scaling Hypercomplex AI for Production

The immediate opportunity is to mature the QNN architecture for deployment on client problems. Our roadmap includes:

Developing more advanced quaternion architectures, including recurrent (QRNN) and convolutional (QCNN) variants.

Implementing analytical gradients using HR-calculus to dramatically improve training speed at scale.

Exploring other Clifford algebras beyond quaternions to find bespoke algebraic structures for specific problem domains.

5.2 Track 2: Automated Discovery of Quantum Algorithms

To overcome the VQA's limitations, we will pivot from hand-crafting circuits to automating their discovery. Drawing on our internal expertise with differentiable architectures, our vision is to create a Differentiable Quantum Architecture Search (DQAS) platform. This system will not just tune parameters but will learn the optimal structure of the quantum circuit itself—the gates, their connectivity, and the training strategy—for a given problem. This ambitious goal moves beyond simply using quantum circuits and toward a future where we can autonomously generate novel quantum algorithms.

These two tracks are deeply synergistic. Insights from the algebraic structure of QNNs can inform the design of quantum gate sets, while quantum principles can inspire new classical architectures. This is the core of the Apoth3osis mission: a symbiotic evolution of human and artificial intelligence, creating models that are more than the sum of their parts.

6. Conclusion

We have presented a unified computational framework built on the algebra of quaternions. We have proven its validity for representing complex quantum systems and demonstrated its power in a novel, high-performing Quaternion Neural Network. This research provides both an immediate pathway to building more effective classical AI models and a strategic roadmap for pioneering the future of quantum machine learning through automated algorithm discovery. The journey has just begun, but the foundation is set for a new era in the modeling of complex systems.

References

1 Apoth3osis Ramp;D. (2025). Internal Research, Codebase quaternioncirqv3.py.

2 Talebi, S. P., et al. (2025). A Quantum of Learning: Using Quaternion Algebra to Model Learning on Quantum Devices. arXiv:2504.13232.
